Flatbed Fiber Laser Cutting Machine 1000W-12000W
GLDMA Flatbed Fiber Laser Cutting Machine 1000W-12000W.
GLDMA top rated fiber laser cutting machine is designed for metal fabrication, including steel, aluminum, titanium, alloy, brass, copper, iron with different laser powers (1000W, 1500W, 2000W,3000W,4000W,6000W). Now the affordable fiber laser cutter for sale at a low price, with the best fiber laser cutting system service and support.
High Precision Welding Bed
Integrated bed with sheet production line, self-sufficiency, shorter delivery Various working size optional
Auto Oil-filling
Intelligent system for auto oil filling oil cut-off avoided
Cost-Effective
Low waste of raw materisals Low investment with short payoff period
Super heavy Steel Welding Machine Bed
The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.
The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Intelligent Control System
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
Auto focusing laser head
Auto focusing laser head
The auto-focusing optical fiber cutting head has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within the specified range. The continuous focus can be set by the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

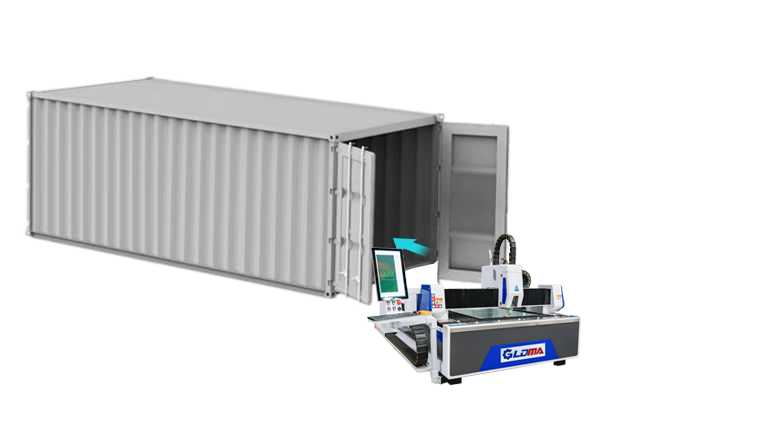

Packed in a 20GP container for easy transportation.
This small machine can be installed in a 20GP container to protect the fuselage from damage during transportation, reduce transportation costs, and facilitate loading and unloading. portation, reduce transportation costs, and facilitate loading and unloading.
What is this Machine Used for?
The metal sheet laser cutting machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other steel; Application in automobile industry, sheet metal industry, furniture industry, advertising industry, etc.
Parameter of Laser Cutting Machine for Steel
| Model | RAS-3015/RAS-4015/RAS-4020/RAS-6015/RAS-6020 metal laser cutting machine |
| Working Area | 3050*1525/4050*1525/4050*2020/6050*1525/6050*2020 |
| Laser Power(kw） | 1/1.5/2/3/4 |
| Maximum Speed（m/min） | 80 |
| Maximum acceleration（g） | 0.8 |
| X/Y Axis positioning accuracy（mm/m） | ±0.05 |
| X/Y Axis repeated positioning accuracy（mm） | ± 0.02 |
What is the Maximum Cutting Thickness？
| Material | 1KW | 1.5KW | 2KW | 3KW | 4KW | 6KW | 8kw | 12000W |
| Carbon Steel(mm) | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 | 0.4-25 | 0.4-25 | 0.4-25 | 0.4-45 |
| Stainless Steel(mm) | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-12 | 0.4-20 | 0.4-28 | 0.4-40 |
| Aluminum (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-22 |
| Brass (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-6 | 0.4-8 | 0.4-14 | 0.4-16 | 0.4-20 |
